GENERAL FEATURES

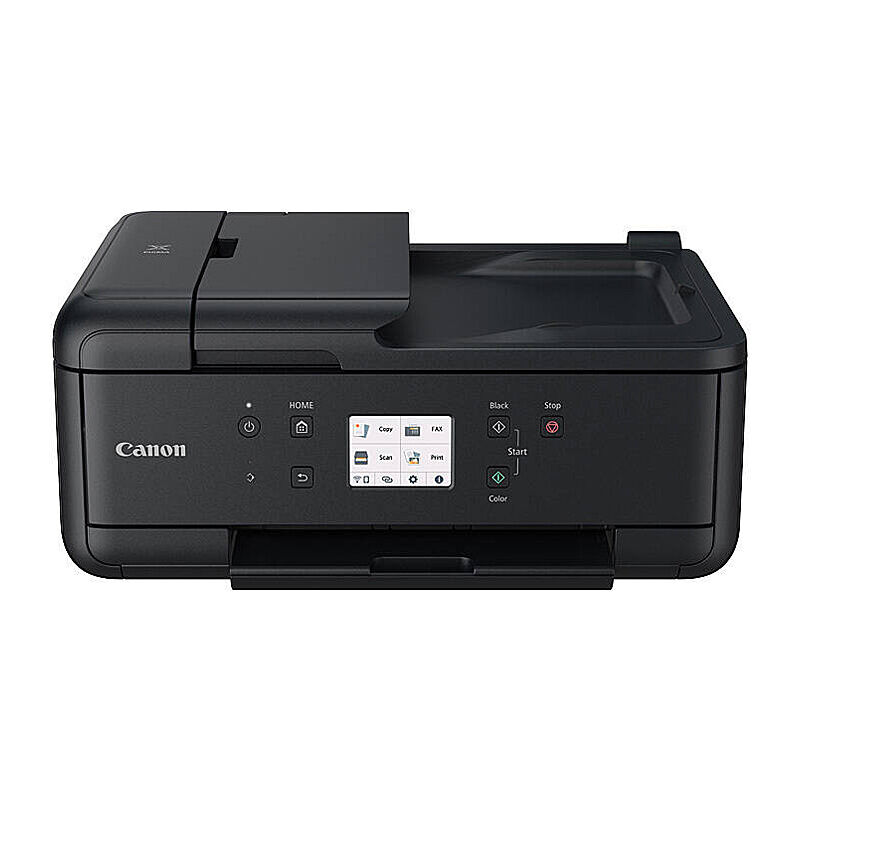

Model PIXMA HOME OFFICE TR7660a
Ink Type 5 Individual Ink Tanks (PGBK / C / M / Y / BK)
Maximum Print Resolution 4,800 dpi*2x 1,200 dpi
Size Approx. 438 x 350 x 190
Approx. 17.3 x 13.8 x 7.5
Weight Approx. 7.9 kg
Approx. 17.3 lbs
Display 3.0″ / 7.5 cm LCD (Touch Screen, Colour)
Paper capacity-Auto document feeder Paper Handling (Plain Paper)-A4 / LTR: 20, LGL: 5
Interface USB / Wireless / QR code
Input Power AC 100 V -240 V, 50 Hz / 60 Hz
PRINT SPEED
Document: Colour*3 Approx. 10.0 ipm
Document: Black & White*3 Approx. 15.0 ipm
Photo (4″ x 6″)*3 Approx. 37 sec
POWER CONSUMPTION
OFF Approx. 0.3 W
Standby (MFP: scanning lamp is off)
USB connection to PC Approx. 1.0 W
Standby (all ports connected, MFP:
scanning lamp is off) Approx. 1.8 W
Copying*28 USB connection to PC Approx. 13 W
ENVIRONMENT
Operating Environment*24 Temperature: 5 °C -35 °C, Humidity: 10 %RH -90 %RH
(no dew condensation)
Recommended Environment *25 Temperature: 15 °C -30 °C, Humidity: 10 %RH -80 %RH
(no dew condensation)
Storage Environment Temperature: 0 °C -40 °C, Humidity: 5 %RH -95 %RH
(no dew condensation)
ACOUSTIC NOISE (PC PRINT)
Quiet Mode Available
Acoustic Noise (PC Print) Plain Paper*27Approx. 46.5 dB(A)
PRINT HEAD / INK
Number of Nozzles Total 4,096 nozzles (PGBK / C / M: each 1,024 nozzles,
Y / BK: each 512 nozzles)
Ink Tank 5 Individual Ink Tanks (PGBK / C / M / Y / BK)
PRINTABLE WIDTH
Up to 203.2 mm (8″) / Borderless: Up to 216 mm (8.5″)
PRINTABLE AREA
Borderless Printing*4 Top / Bottom / Right / Left margin: each 0 mm
Bordered Printing
•#10 Envelope / DL Envelope
Top: 8 mm, Bottom: 12.7 mm, Right: 5.6 mm, Left: 5.6 mm
•Square (127 mm x 127 mm)
Top: 6 mm, Bottom: 6 mm, Right: 6 mm, Left: 6 mm
•Square (89 mm x 89 mm)
Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
•LTR / LGL
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
•Other
Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
Bordered Auto 2-sided printing
•LTR
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
•Other
Top: 5 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
SUPPORT MEDIA
Rear Tray
Plain Paper (64 g/m2 -105 g/m2),
High Resolution Paper (HR-101N),
Photo Paper Pro Platinum (PT-101),
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
Photo Paper Pro Luster (LU-101),
Photo Paper Plus Semi-gloss (SG-201),
Photo Paper Glossy (GP-701) (for North America / Oceania),
Matte Photo Paper (MP-101),
T-Shirt Transfer, Envelope,
Magnetic Photo Paper (MG-101) (for except China),
Restickable Photo Paper (RP-101) (for except China),
Greeting Card (manufactured by Avery and RedRiverPaper),
Cardstock (manufactured by Neenah Paper and INKPRESS),
Dark Fabric Iron on Transfers (DF-101),
Light Fabric Iron on Transfers (LF-101),
Premium Fine Art Rough (FA-RG1)
Cassette Plain Paper (64 g/m2 -105 g/m2)
PAPER SIZE
Rear Tray
A4, A5, B5, LTR, LGL, #10 Envelope, DL Envelope,
Card Size (91 mm x 55 mm), 4″ x 6″, 5″ x 7″, 7″ x 10″, 8″ x 10″,
Square (89 mm x 89 mm, 127 mm x 127 mm),
Custom Size (width: 55 mm -215.9 mm, length: 89 mm -676 mm)
Cassette A4, A5, B5, LTR,
Custom Size (width: 148 mm -215.9 mm, length: 210 mm -297 mm)
PAPER SIZE (BORDERLESS)
A4, B5, LTR, 4″ x 6″, 5″ x 7″, 8″ x 10″, Card Size (91 mm x 55 mm),
Square (89 mm x 89 mm), Square (127 mm x 127 mm)
PAPER HANDLING (MAXIMUM NUMBER)
Rear Tray
•Plain Paper (LTR): Plain Paper (64 g/m2): 100
•Plain Paper (A4): Plain Paper: 100
•Photo Paper (4″ x 6″): Photo Paper Pro Platinum (PT-101) /
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania) /
Photo Paper Plus Semi-gloss (SG-201) /
Photo Paper Glossy (GP-701) (For North America / Oceania) /
Matte Photo Paper (MP-101) /
Restickable Photo Paper (RP-101) (for except China): 1
Cassette •Plain Paper (LTR): Plain Paper (64 g/m2): 100
•Plain Paper (A4): Plain Paper (64 g/m2)
SUPPORT MEDIA FOR AUTO 2-SIDED PRINTING
Type Plain Paper
Size A4, A5, B5, LTR
PAPER WEIGHT
Rear Tray
Plain Paper: 64 g/m2 -105 g/m2 ,
Canon paper: Max. paper weight Approx. 300 g/m2
(Photo Paper Pro Platinum (PT-101))
Cassette Plain Paper: 64 g/m2 -105 g/m2
SCANNER FUNCTIONS
Scanner Type Flatbed (ADF / Platen)
Optical Resolution*6 1,200 dpi x 2,400 dpi
Scanning Bit Depth
(Input / Output)
Grayscale:16 bit / 8 bit
Colour: RGB each 16 bit / 8 bit
Maximum Document Size Flatbed: A4 / LTR (216 mm x 297 mm)
ADF: A4 / LTR / LGL
COPY FUNCTIONS
Maximum Document Size A4 / LTR
Compatible Media
Size: A4, A5, B5, LTR, LGL, 4″ x 6″, 5″ x 7″,
Card Size (91 x 55 mm), Square (127 mm x 127 mm)
Type: Plain Paper,
Photo Paper Pro Platinum (PT-101),
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
Photo Paper Pro Luster (LU-101),
Photo Paper Plus Semi-gloss (SG-201),
Photo Paper Glossy (GP-701) (for North America / Oceania),
Matte Photo Paper (MP-101),
Dark Fabric Iron on Transfers (DF-101),
Light Fabric Iron on Transfers (LF-101)
Multiple Copy Black & White / Colour: max. 99 pages
FAX FUNCTIONS
Type Desktop Transceiver (Super G3, Colour Communication)
Applicable Line PSTN
Transmission Speed*30 Black & White: Approx. 3 sec
Colour: Approx. 1 min
Fax Resolution
Black & White: 8 pels/mm x 3.85 lines/mm (Standard)
8 pels/mm x 7.7 lines/mm (Fine)
300 dpi x 300 dpi (Extra Fine)
Colour: 200 dpi ×200 dpi
Print Size A4, LTR, LGL
Scanning Width A4 / LTR
Modem Speed Max. 33.6 kbps (Automatic fall back)
Compression Black & White: MH, MR, MMR
Colour: JPEG
Gradation Black & White: 256 levels
Colour: 24 bit (RGB each 8 bit)
Automatic Dialling Directory: Max. 100 locations
Group Dialling: Max. 99 locations
Transmission / Reception Memory*31 Approx. 250 pages
